$6.25

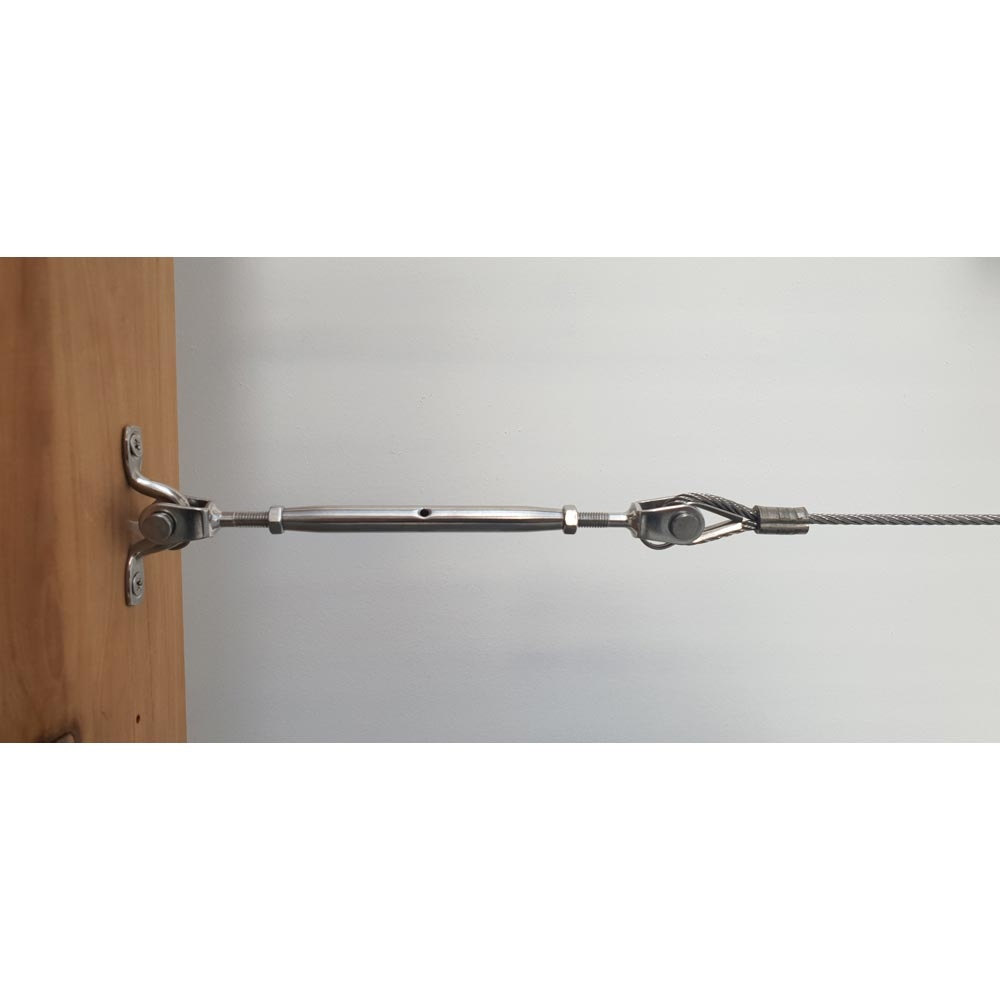

This popular wire balustrade system is versatile and designed for fixing 3.2mm wire rope to timber posts or metal posts. Most suited for runs under 10 metres.

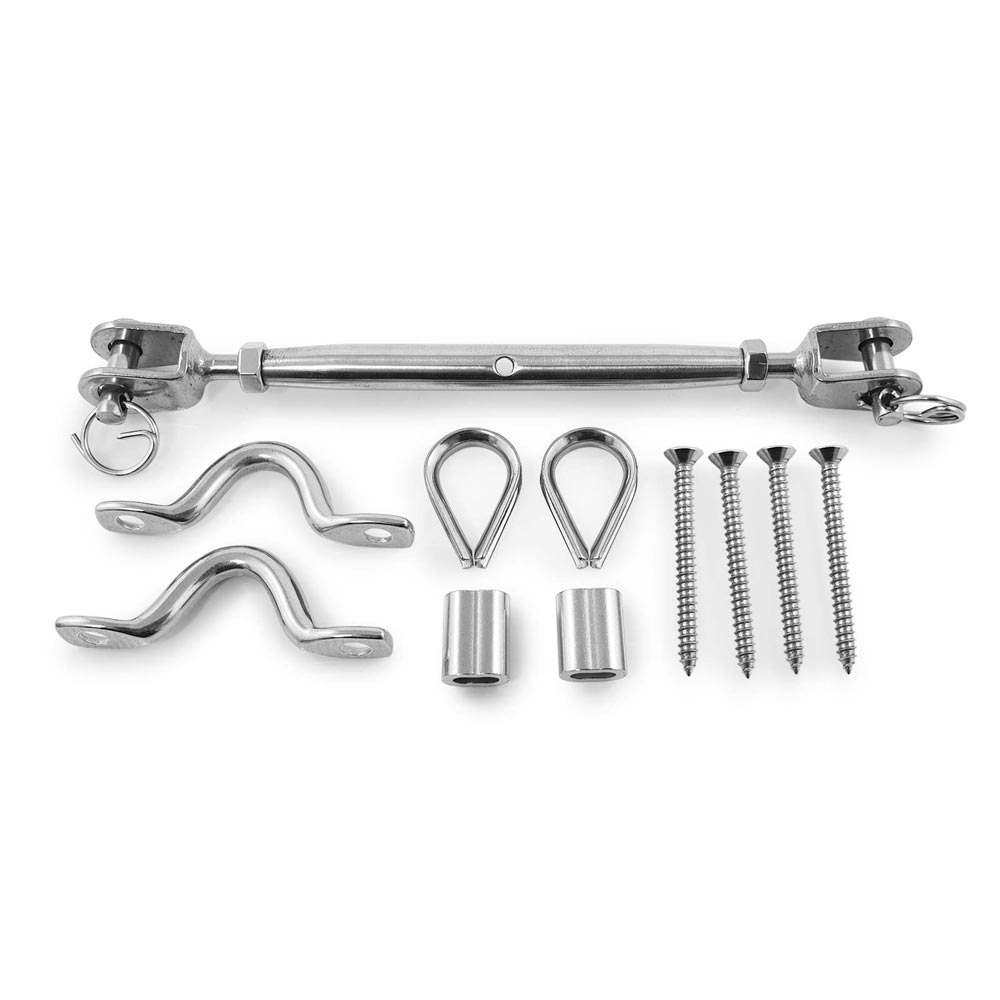

Designed for fixing 7x7 or 7x19 3.2mm wire
Stainless Steel
Straight & Angled Sections
This popular wire balustrade system is versatile and designed for fixing 3.2mm wire rope to timber posts or metal posts.
The jaw/jaw bottlescrew can be easily fixed to the saddles by removing a pin at one end.
Using flexible 7x7 or 7x19 wire, run the wire through the swage/ferrule and loop through a thimble, then back into the swage and simply crimp using our 350mm mechanical hand swaging tool or 600mm mechanical hand swaging tool or light duty hydraulic swaging tool.
For Metal Posts: With the rivet in the saddle recess, the thickness is approximately 1.1mm. So please add this amount to your post thickness when considering which rivet size. eg. For a post thickness of 2.5mm: 1.1mm + 2.5mm = 3.6mm minimum grip range (4-3 rivet or above).
\1x19 wire is unsuitable for looping around thimbles. A more flexible wire, either 7x7 (most common) or 7x19 must be used.
| Product Material | Stainless Steel |
|---|---|
| Swaging System | Mechanical Swaging |
| Post Fixing Material | Timber, Metal |
| Section Type | Straight Sections, Angled Sections (eg. Stairs / Ramps) |
| Wire Rope Diameter | 3.2mm |
| Product Specifications |
|
| Stock Availability | In Stock |
| Bulky item | No |
