Wire Balustrade Kit #100 – Flip Lock System (Metal)
From$12.55
To$13.27
A staff favourite, the Flip Lock system allows you to create neat, streamlined wire runs between existing metal posts. No more rivet nuts needed! Used with M6 threaded fittings such as swage stud terminals for 3.2mm wire. Requires hydraulic swaging.

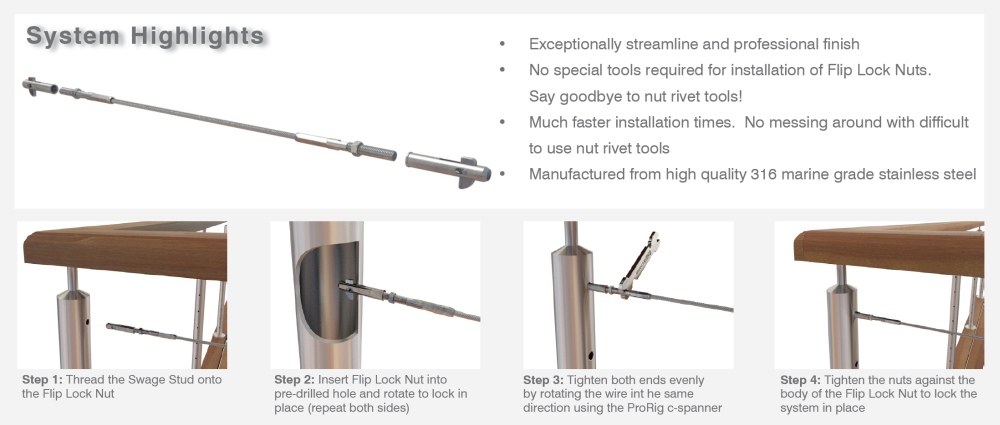

The Flip Lock Nut combined with a Swage Stud Terminal allows you to create neat, streamlined wire runs between existing metal posts. There is no design on the market like it. It eliminates the requirement for installing rivet nuts and rivet nut tools. All you require is a Flip Lock Nut RHT, swage stud terminal RHT, and then the same LHT fittings at the opposite end of the run. Used with M6 threaded fittings such as swage stud terminals for 3.2mm wire. Requires hydraulic swaging.
The complete Flip Lock System consists of the following components:
Flip Lock Nut RHT M6 x 30mm
Flip Lock Nut LHT M6 x 30mm
Swage Stud Terminal RHT M6
Swage Stud Terminal LHT M6
For a bottlescrew tensioner version of the kit see Kit #101.
For technical requirements where you are unsure what products are and are not compatible please Contact Us.
Please note these are general Compatibilities/Incompatibilities, we cannot provide advice as to whether these components will meet the technical/structural requirements of your project. For this type of information you will need a builder, engineer or other qualified professional to assess your site and needs.
For technical requirements where you are unsure what products are and are not compatible please Contact Us.
Please note these are general Compatibilities/Incompatibilities, we cannot provide advice as to whether these components will meet the technical/structural requirements of your project. For this type of information you will need a builder, engineer or other qualified professional to assess your site and needs.
